Horizontal Boring Machines

866-631-3786

Products

Product Quick View

Model Weight Capability
140EW 26 lb 2″ – 4″, 50 feet
500TWG 165 lb 2”-6”, 100 feet
500TW 165 lb 2”-6”, 100 feet
500RTW 135 lb 2”-6”, 100 feet
900TW 285 lb 2”-14”, 150 feet
900RTW 210 lb 2”-14”, 150 feet
1200TW 295 lb 2”-24”, 200 feet
700TWA 325 lb 2”-14”, 150 feet
1800TW 395 lb 3”-28”, 300 feet


The models shown are our standard production models. These models fill 99% of our customers needs but if the dimensions or design won’t work in your particular application we are happy to quote you on a custom built machine that will. Please call us at 866-631-3786 for more information.


Click Here to View Our Accessory Attachments.

22 inch Backreamer LgSd Carbide
4 inch Backreamer LgSd Carbide
3 inch Pilot Bit SmSd Carbide
4 inch Pull Bar
10 inch Pull Bar
8 inch Pull Plate
10 inch Backreamer SmSD Carbide
2 inch Pilot Bit SmSd Carbide
Cable Swivel LgSd
Cable Swivel SmSd

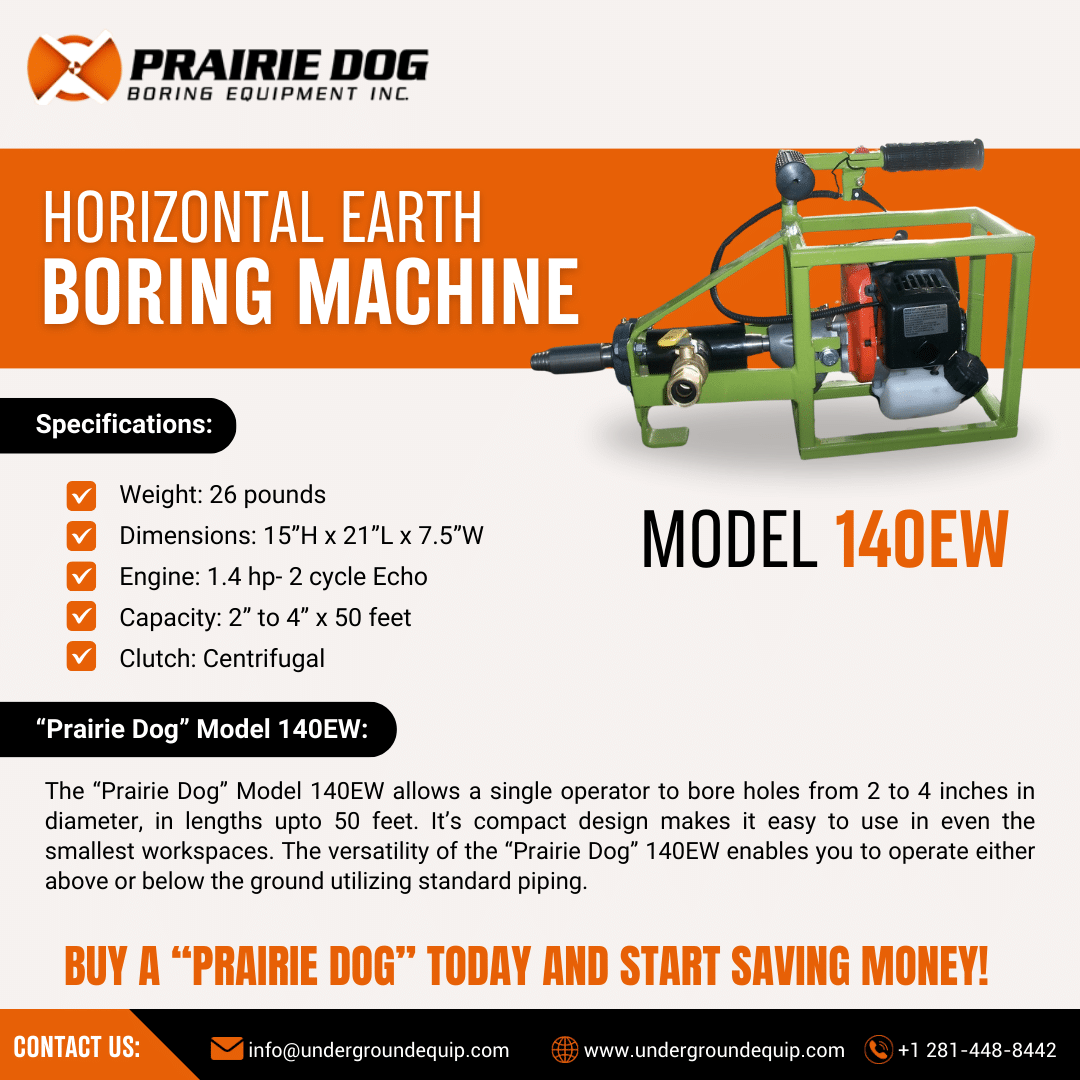

Model 140EW

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


26 lbs, 15” x 21” x 7.5”
Engine: 1.3 hp 2-cycle
Gearbox: Sealed, spur gear
Clutch: Centrifugal

Hand held
Capacity: 2”-5” x 50 feet
Complete package
Under $3200
– PDP140EW
– 48′ drill stem
– 2″ pilot bit
– 4″ backreamer
– alignment system
– cable swivel
140EW

140EW Owner’s manual and parts list



Model 500TW

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


165 lbs, 32” x 102” x 18”
Engine: 5.5 hp gasoline
Gearbox: Sealed, spur gear
Clutch: Centrifugal, oil
Advance: Rack & Pinion
Capacity: 2”-6” x 100 feet

Owner’s Manual

Model 500TWG

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


150 lbs, 32” x 66” x 18”
Engine: 5.5 hp gasoline
Gearbox: Sealed, spur gear
Clutch: Centrifugal, oil
Advance: Rack & Pinion
Capacity: 2”-6” x 100 feet
Perfect for utility installation in congested areas.  Replaces missiles and operates in the same size pit.
500TWG

Owner’s Manual



Model 500RTW

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


135 lbs, 32” x 24” x 32”
Engine: 5.5 hp gasoline
Gearbox: Sealed, spur gear
Clutch: Centrifugal, oil
High floatation tires
Capacity: 2”-6” x 100 feet

Owner’s Manual



Model 900TW

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


295 lbs, 36” x 102” x 18”
Engine: 8.5 hp gasoline
Transmission: Planetary, forward and reverse
Advance: Rack & Pinion
Capacity: 2”-14” x 150 feet

Owner’s Manual



Model 900RTW

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


210 lbs, 32” x 44” x 27”
Engine: 8.5 hp gasoline
Transmission: Planetary, forward and reverse
High floatation tires
Capacity: 2”-14” x 150 feet

Owner’s Manual



Model 1200TW

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


315 lbs, 36” x 102” x 18”
Engine: 11 hp gasoline
Transmission: Planetary, forward and reverse
Advance: Rack and pinion
Capacity: 2’-24” x 200 feet

Owner’s Manual



Model 700TWA

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


325 lbs, 36” x 102” x 18”
Engine: Air rotary vane, 9 hp at 100 psi and 90 cfm
Transmission: Planetary, forward and reverse
Advance: Rack and pinion
Capacity: 2”-14” x 150 feet

Owner’s Manual



Model 1800TW

PLEASE CALL 866-631-3786 OR E-MAIL FOR PRICING


395 lbs, 36” X 102” X 18”
Engine: 18 hp twin cylinder gasoline, electric start
Transmission: Planetary, forward and reverse
Advance: Rack and pinion
Capacity: 3”-28” x 300 feet

Owner’s Manual

New Rack & Pinion Advance Design

The new design has been tremendously popular. Is it time to upgrade to a new machine? Give us a call!!! We may be able to convert your old machine to the new style advance.
